Full-auto flexible flap disc machine

Manufacturing speed: 400-700pcs/hour
Backing material: Fiberglass.iron,Steel paper
Size of backing pad: 7KW
Size of backing pad: 52mm-56mm
Share with:
  • Product details
  • Video
  • Inquiry

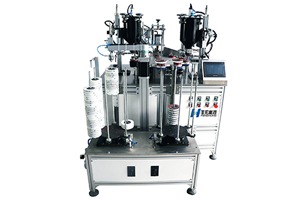

Full automatic flexible flap disc machine can automatically upload backing,detect backing,quantitatively feeding,flap cutting and setting,shaping , Core adhesive and automatically download finished flap discs with high automation.

The equipment adopts PLC to control the human-machine interface, which is easy to operate, saves labor and reduces cost.

The equipment adopts the rotary multi position rotary table mechanism, with stable station conversion, accurate positioning and high efficiency.

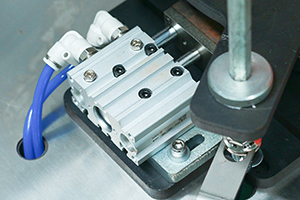

The equipment can be placed in a variety of different types of backing pad, with high-strength aluminum alloy material, stable and durable, easy to load and unload blades

The equipment gluing system adopts the internal water circulation constant temperature control system, the glue pump structure design is reasonable, suitable for different materials of glue, convenient, efficient, stable and fast.

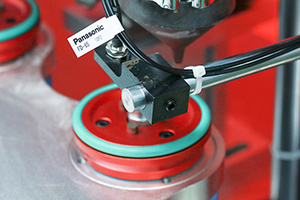

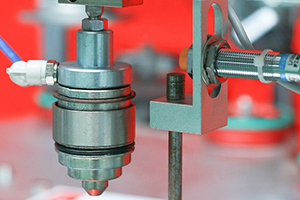

During flap setting,there is an imported photoelectric switch to detect backing and belt.Backing vacant working plate and backing without glue coated can be automatically detected and filtered with stable precision.saves time.

Flap setting angle and flap length can be precise adjusted,The head adjustment translation is equipped with a scale, which can adjust the head accurately and efficiently according to the display parameters.with easy and convenient operation.

High degree of automation, single person can complete 2sets machine operation, liberate labor force, save labor cost for you.

High production efficiency, the machine can produce 400-700 pcs/ hour.

High utilization rate of production materials, free setting of adhesive and sand belt, serving large and medium-sized enterprises.

Very low defective rate. After the machine is adjusted, the defective rate is close to 0%, which makes your production more worry free.


Technical parameters:

Name

Full-auto flexible flap disc machine

Size of main-body

1200mm*1620mm*1460mm

Glue system

Heart glue can be selected automatically

Speed

400-700pcs/hour

Size of feed belt

1000mm*400mm*1450mm

Plate

10

Loading and unloading turntable

8

Voltage

 3phase4wire 380V+N 50HZ/60HZ

Power

7KW

Motor

Imported Panasonic servo motor

Power supply

Pneumatic, electric

Glue pump specifications

Base glue/heart glue 30kg

Glue coated

3-30g(can be adjusted) ±0.1g

Selection of base glue



1,Single glue pump 280/30kg

2,Double glue pump 30kg

Selection Heart glue

1Single glue pump 280/30kg

2,Double glue pump 30kg

Flap quantity

45-52-60

Size of backing pad

52mm-56mm

Backing material

Fiberglass.iron,Steel paper

Belt width

24mm-30mm

Flap length

26mm-28mm

Motion control system

Relative positioning + cam principle + pendulum principle

Glue system

Constant voltage conversion+Intellgent thermostatic water circulation system

operation

One people can operation 2sets
